# 其他服務模組

進一步了解適用於特定使用案例的可選服務模組。

以下章節包含對標準 Zoom Node 部署而言屬於可選或非必要的詳細資訊。

### <mark style="color:藍色;">混合式即時串流模組</mark>

對於 Zoom Events 客戶，以及希望將網路研討會或會議中的音訊和視訊單向廣播給大量接收者的開發人員，Zoom 提供了即時串流服務 LSS。LSS 是一種企業內容傳遞網路（eCDN）串流解決方案，可讓 Zoom Events 進行近即時串流，同時也能嵌入使用 Zoom Video SDK 的自訂解決方案中。

此功能通常透過 Zoom 雲端提供，能將單向媒體串流廣泛分發給世界各地的使用者。

LSS 的混合式版本可在企業內部網路中提供媒體分發功能，依部署位置不同，可大幅節省網際網路或 WAN 頻寬。

#### 解決方案詳細資訊

Zoom 即時串流服務由兩個元件組成：雲端式即時串流區域控制器（LSZC）與即時串流閘道（LSGW）；後者也部署於 Zoom 的雲端中。它也可以使用 Zoom Node 部署到客戶網路中。

LSZC 會根據接收端的網路位置，將使用者的串流請求導向最佳的 LSGW。隨著串流使用者數量增加，LSZC 會視需要呼叫額外的 LSGW。這一切對使用者都是透明的，並由 Zoom 雲端自動處理。

#### 混合式部署

混合式即時串流模組會將即時串流閘道服務延伸至內部部署情境，讓媒體串流可直接傳送到內部網路等功能得以實現。這可大幅降低延遲，並減少網際網路頻寬與防火牆需求。

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-4b91c882141410044915a5c9ae7d946812281e87%2FUnknown%20image?alt=media)

雲端式即時串流區域控制器會管理所有即時串流閘道，不論這些 LSGW 是雲端原生，還是透過 Zoom Node 部署在客戶資料中心中。使用者與這些閘道的連線由 LSGW 管理，會依據其位置將用戶端導向最適合的資源。若他們位於網路內部，將連線至混合式 LSGW；若位於網路外部，則將連線至雲端 LSGW。

#### Node 需求

混合式 LSS 模組會作為 Zoom Node 上的唯一模組進行部署，而不是作為 Node 上四個模組之一進行部署。LSS 服務可以擁有自己的 IP 位址，或者若您希望 VM 與服務共用單一 IP 位址，也可以與 Node 管理 IP 共用同一個 IP 位址。

### <mark style="color:藍色;">Web 應用程式閘道</mark>

Zoom 為現代網頁瀏覽器提供以網頁為基礎的 Zoom Workplace 應用程式（ZWA），可作為標準 Zoom Workplace 應用程式的替代安裝方式。

Hybrid Web Application Gateway (WAG) 可讓 Zoom 網頁應用程式加入 **Private Mode 會議**。這是一種獨特的會議類型，在您的 Meetings Hybrid 基礎架構上本機執行。在私人會議期間，使用者分享及建立的所有媒體都會留在您的網路中。

{% hint style="info" %}
**Hybrid Web Access Gateway 不會用於** **混合模式會議**。透過網頁瀏覽器加入混合會議的使用者，會透過 Zoom 雲端使用網頁閘道。
{% endhint %}

混合式 WAG 允許每個部署在 Zoom Node 上的服務同時支援 200 位使用者。它可與其他會議混合式服務同時執行。

如需必要條件的詳細資訊，請參閱 [IP 位址規劃矩陣](https://library.zoom.com/technical-library/zh-tw/jin-jie-qi-ye-fu-wu/zoom-node/zoom-node-deployment-field-guide/zoom-node-infrastructure-prerequisites.md#ip-address-planning-matrix) 。

#### 安裝 Web 存取控制器 Proxy 與 Web 存取閘道

若要安裝這兩個模組：

1. 登入 Zoom 管理網頁入口網站。
2. 前往 **Zoom Node 管理** 區段。
3. 按一下 **服務** ，然後在畫面右上角的選單中按一下 **節點** 索引標籤。

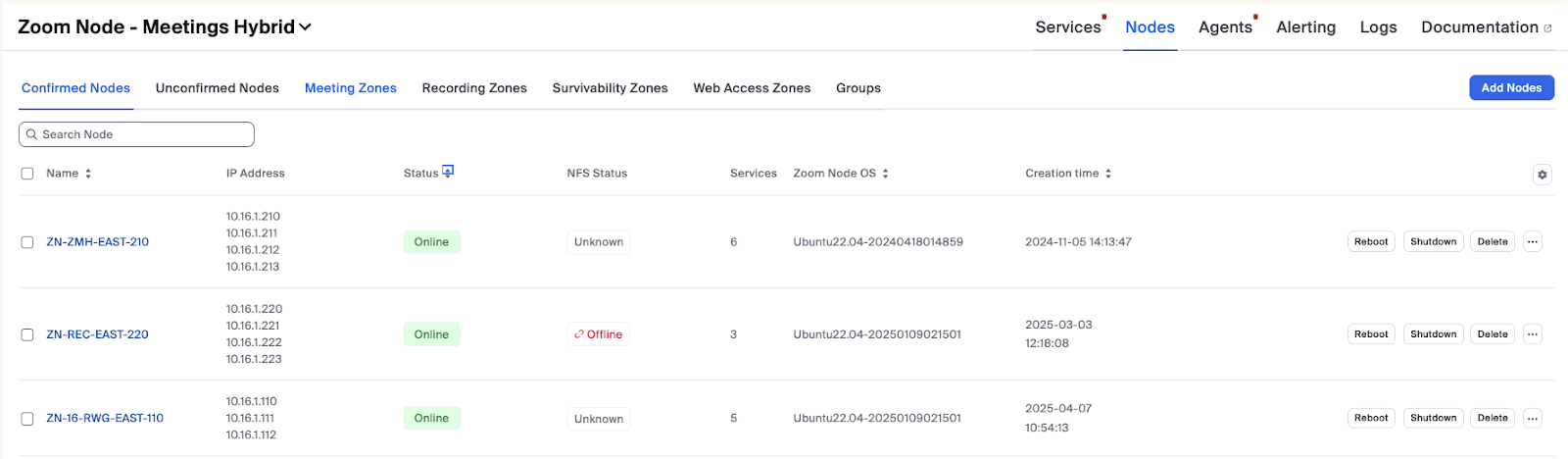

4. 會顯示已定義的節點清單。
   1. 尋找您為即時網頁閘道（RWG）部署的 Zoom Node 名稱，或具有足夠容量、可用槽位和 IP 位址的現有 Node。

      <figure><img src="https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-15bddd64c01a0a7fb8f713e9209b0ab5a8185f96%2FUnknown%20image?alt=media" alt=""><figcaption></figcaption></figure>
5. 按一下節點清單上方的 **Web Access Zones** 索引標籤。
6. 按一下藍色 **+ Add Zone** 按鈕下方的白色 **Add Nodes** 按鈕，以定義 Web Access Zone。
   1. 新增新的 Web 存取區域可決定您的混合式 Web 存取元件將與哪個 Zoom 資料中心通訊。
7. 為新區域命名。
8. 按一下 **Zoom 資料中心** 下拉式選單，然後選取最接近您部署服務位置的 Zoom 資料中心。
9. 按一下 **確認**.

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-3b856113733af5a496543ace7cfecbf9ce15356a%2FUnknown%20image?alt=media)

10. 按一下 **返回** ，在 **服務** 選單中查看已安裝服務的清單。

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-5244b8b1caf48c65975486a8880726d3b243b7ab%2FUnknown%20image?alt=media)

現在您必須安裝 **Web Access Controller Proxy** 和 **Web Access Gateway**.

Web 存取控制器 Proxy 會在會議加入過程中為瀏覽器提供通訊，而 Web 存取閘道則充當媒體閘道。

#### 安裝 Web 存取控制器 Proxy

若要新增 Web 存取控制器 Proxy：

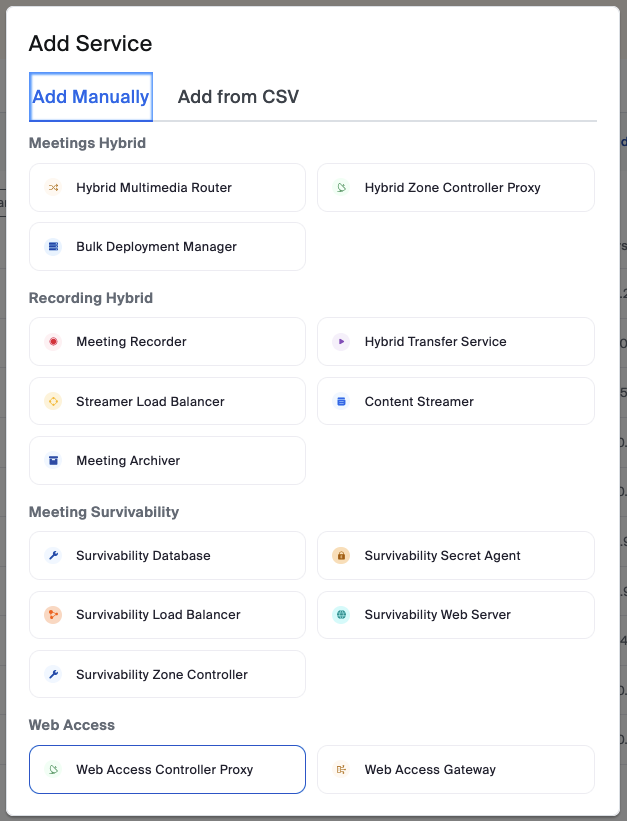

1. 按一下 **新增服務**.
2. 在 **Web Access** 標題下方，按一下 **Web Access Controller Proxy** 方塊。

   <figure><img src="https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-18233e0fec4ca06dba46bc6d8552fa7c711c8a63%2FUnknown%20image?alt=media" alt="" width="375"><figcaption></figcaption></figure>
3. 將會開啟下列視窗：

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-10908f93245c0d4c32ed2356701410b18e931529%2FUnknown%20image?alt=media)

4. 在 **安裝於節點** 選項下方，指定要部署 Web Access 服務的節點。
5. 在 **Web Access Zone** 下拉式清單中，按一下您先前定義的 Web Access Zone。
6. 在 **Internal IP** 文字方塊中，輸入 Node 上可用 IP 位址的位址。

{% hint style="info" %}
如果 Node 指派的 IP 位址不足，請透過本機 TUI 或 GUI 新增位址。若要執行此操作，請按一下列出的 Node 旁的省略號，前往其 **Local Admin Portal** ，然後進行驗證以新增更多位址。
{% endhint %}

7. 按一下 **新增** 以安裝 Web Access Controller Proxy。

安裝程序大約需要最多五（5）分鐘。服務在準備啟動時會變更狀態，依序為：下載中 > 待處理 > 已停止 > 啟動。

#### 安裝 Web 存取閘道

若要安裝 Web 存取閘道：

1. 按一下 **新增服務**.
2. 在 **Web Access** 標題下方，按一下 **Web Access Gateway** 方塊。

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-dd31278844a280ea7f918431c719cd32cb572369%2FUnknown%20image?alt=media)

3. 將會開啟下列視窗：

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-5a6ee0c96fea303f512db459ae74c5595849ae1b%2FUnknown%20image?alt=media)

4. 在 **安裝於節點** 選項下方，指定要部署 Web Access 服務的節點。
5. 在 **Web Access Zone** 下拉式清單中，按一下您先前定義的 Web Access Zone。
6. 在 **Internal IP** 文字方塊中，輸入 Node 上可用 IP 位址的位址。
7. 按一下 **新增**以安裝 Web Access Controller Proxy。

#### 設定

現在兩個模組都已安裝完成，剩餘的設定即可進行。

決定您希望允許哪些類型的使用者透過 Zoom Web App 加入會議

這可在整個帳戶層級、群組層級，或針對單一使用者進行。為了測試，Zoom 建議先對測試群組啟用此功能。

若要為整個帳戶啟用此功能，請登入 Zoom 管理入口網站。在 [**管理中心**](https://zoom.com/account)中，前往 [**設定**](https://zoom.com/account/setting).

從頂端功能表選取 **會議** 索引標籤。在搜尋對話方塊中搜尋「hybrid」，或向下捲動頁面並找到 **混合式服務…** 區段。

![](https://2668295848-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FctBXUMeBy4rtLMmMkKRG%2Fuploads%2Fgit-blob-7498c5822a2514ec6d2a89c119d57610058db3e5%2FUnknown%20image?alt=media)

勾選 **允許 Zoom Web 用戶端加入私人會議**的核取方塊。如此一來，使用者便可透過網頁瀏覽器加入私人模式的 Zoom 會議。

{% hint style="info" %}
啟用一群使用者或個別使用者時，也適用相同的指示。只要前往您想啟用的其中一個選項，並勾選相同的 **允許 Zoom Web 用戶端加入私人會議**.
{% endhint %}

#### 測試部署

現在元件已安裝並設定完成，請執行驗證測試。

1. 從已啟用此功能的主機排程一場私密模式會議。
2. 使用 Zoom Workplace 應用程式用戶端加入會議，以確認這是私人模式會議。按一下 **綠色會議盾牌** 即可查看私人模式指示標記。
3. 從會議邀請中複製 **會議加入 URL** 。
4. 將複製的 URL 貼到新的私人或無痕瀏覽器視窗中。按下 **Enter**.
5. 如果瀏覽器提示您要使用 Zoom Workplace 應用程式開啟連結，請不要繼續。關閉該提示。
6. 如果瀏覽器提示您下載 Zoom Workplace 應用程式，請取消下載。
7. 幾秒鐘後，瀏覽器中會出現兩個按鈕。
8. 按一下 **從瀏覽器加入** 按鈕。
   1. 不要點擊藍色按鈕。那會嘗試啟動完整的 Zoom Workplace 應用程式。


---
